ZW180-7

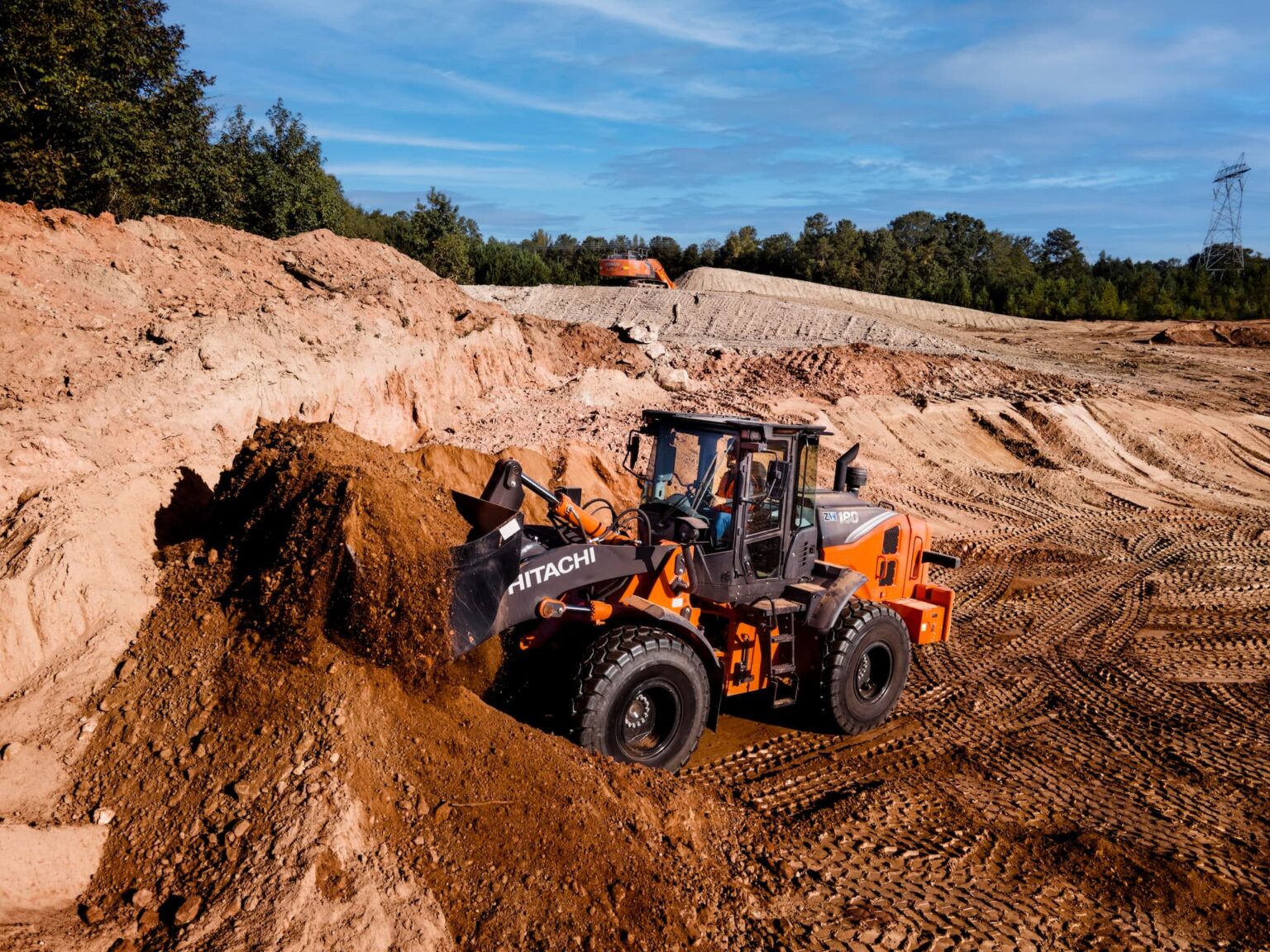

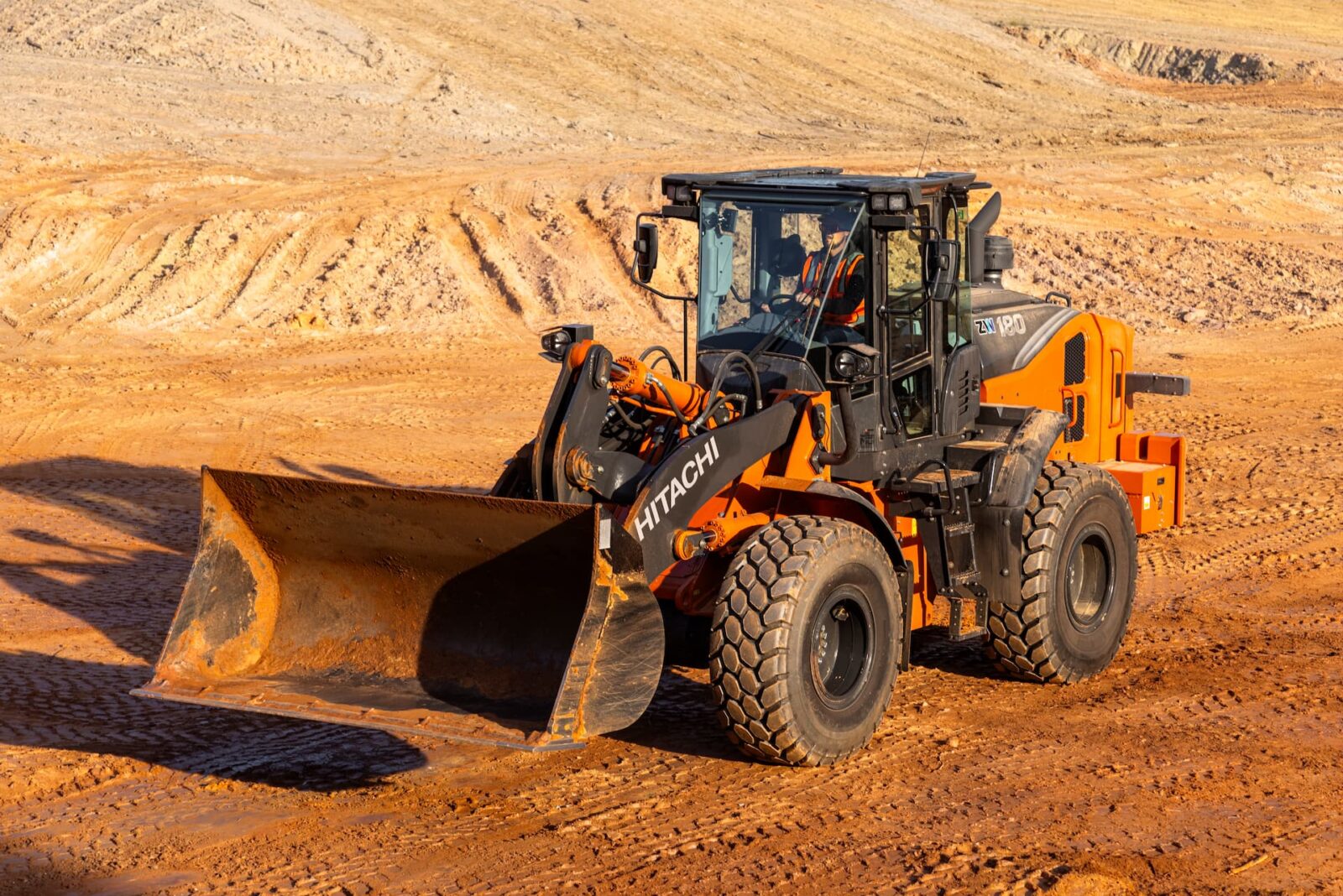

Transform your worksite efficiency and productivity with the robust Hitachi ZW180-7 Wheel Loader, engineered to meet the challenges of jobs, big or small. Ideal for construction sites, landscaping applications, road construction, snow management and more, this new dash 7 loader is designed to deliver top performance and versatility.
Discuss the specifications of this model and how it compares to your needs with the expert team at Wajax.
Product Documents
Product Highlights
- Powerful Performance: Features a Cummins B6.7 engine delivering up to 173 hp and 1,120 Nm of torque, meeting EPA Final Tier 4 / EU Stage V emission standards.
- Operator Comfort & Safety: The spacious cab includes seat integrated ergonomic electric over hydraulic controls with adjustable operator sensitivity. modes. All new safety features include rear obstacle detection and aerial angle 270-degree camera system.
- Cutting Edge Technology: Equipped with the accurate Hitachi payload checker system. Provides operators with real time feedback on load weights and pass tracking. Shares values machine performance metrics through Global E Service and Consite applications.
- Exceptional Durability: Constructed with high-quality materials, the robust design is engineered for demanding environments.
- Enhanced Mobility & Speed: Multiple working modes ensure balance of fuel consumption and machine performance. All new chassis mounted pitch angle sensors detect changes in grade and automatically adjust working modes to ensure the ideal power mode is active.
Specifications
| Engine Output Max Gross | 129 kW (173 hp) at 2,200 rpm (ECE R120 and ISO 14396:2002) |
| Engine Output Max Net | 125 kW (168 hp) at 2,200 rpm (ISO 9249:2007) |
| Bucket Capacity | Ranges from 2.5 to 5.2 m³ (3.3 to 6.8 cubic yards) |
| Operating Weight | 14,950 to 15,710 kg (32,959 to 34,635 lbs) |
| Engine model | Cummins B6.7 |
| Breakout force (standard arm) | 128 kN (13,010 kgf or 28,682 lbf) |
