Hitachi

Compact Excavator

ZX26U-5

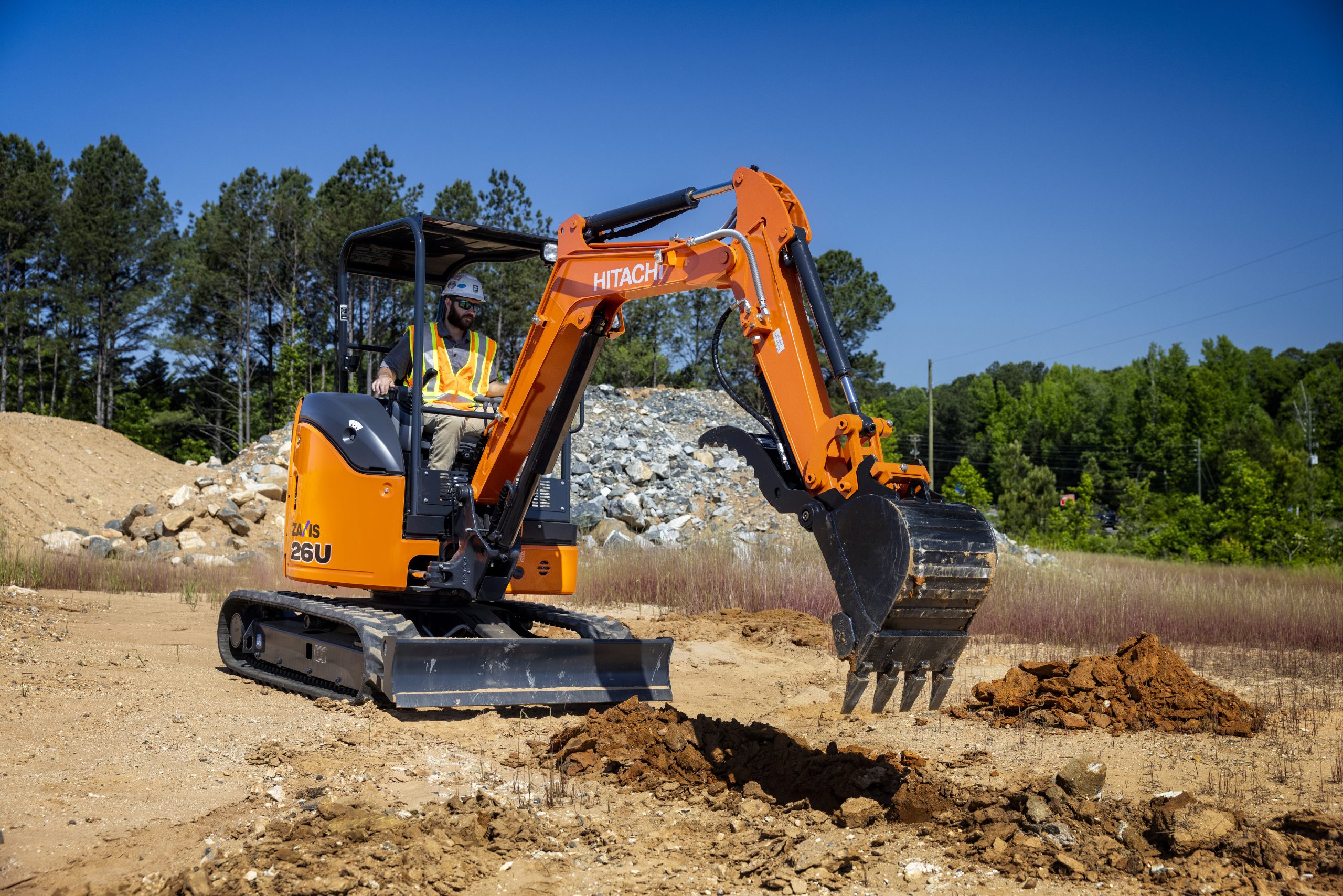

Compact Excavator

Although the ZX26U-5 is one of our smallest excavators, it gives you big-time performance on all kinds of jobs. This machine is nimble and designed to keep its tail close to its tracks – so you can work where others can’t.

Product Highlights

  • The Yanmar diesel engine meets EPA Final Tier 4 (FT4)/EU Stage IV emission regulations. It’s easy to maintain and requires no aftertreatment device.
  • Unique steel cores within rubber tracks resist cracking, and large-diameter drive sprockets and track idlers make for a rock-solid undercarriage.
  • Versatile rubber tracks minimize ground damage and allow machines to cross virtually any terrain, including paved surfaces.
  • Standard backfill blade adds versatility, enabling these compacts to grade and backfill, as well as provides extra stability.

Specifications

EngineYanmar 3TNV80F
Net Power14.9 kW (20.0 hp) at 2,500 rpm
Operating Weight2770 kg (6,110 lb)
Max Dig Reach22.21 kN (4,994 lb)
Max Dig Depth2.59 m (8 ft 6 in)
Swing Speed9.1 rpm
Arm Force15.17 kN (3,410 lb)
Bucket Force22.21 kN (4,994 lb)
