Wheel Loader
Hitachi | LANDCROS
ZW310-7
Wheel Loader

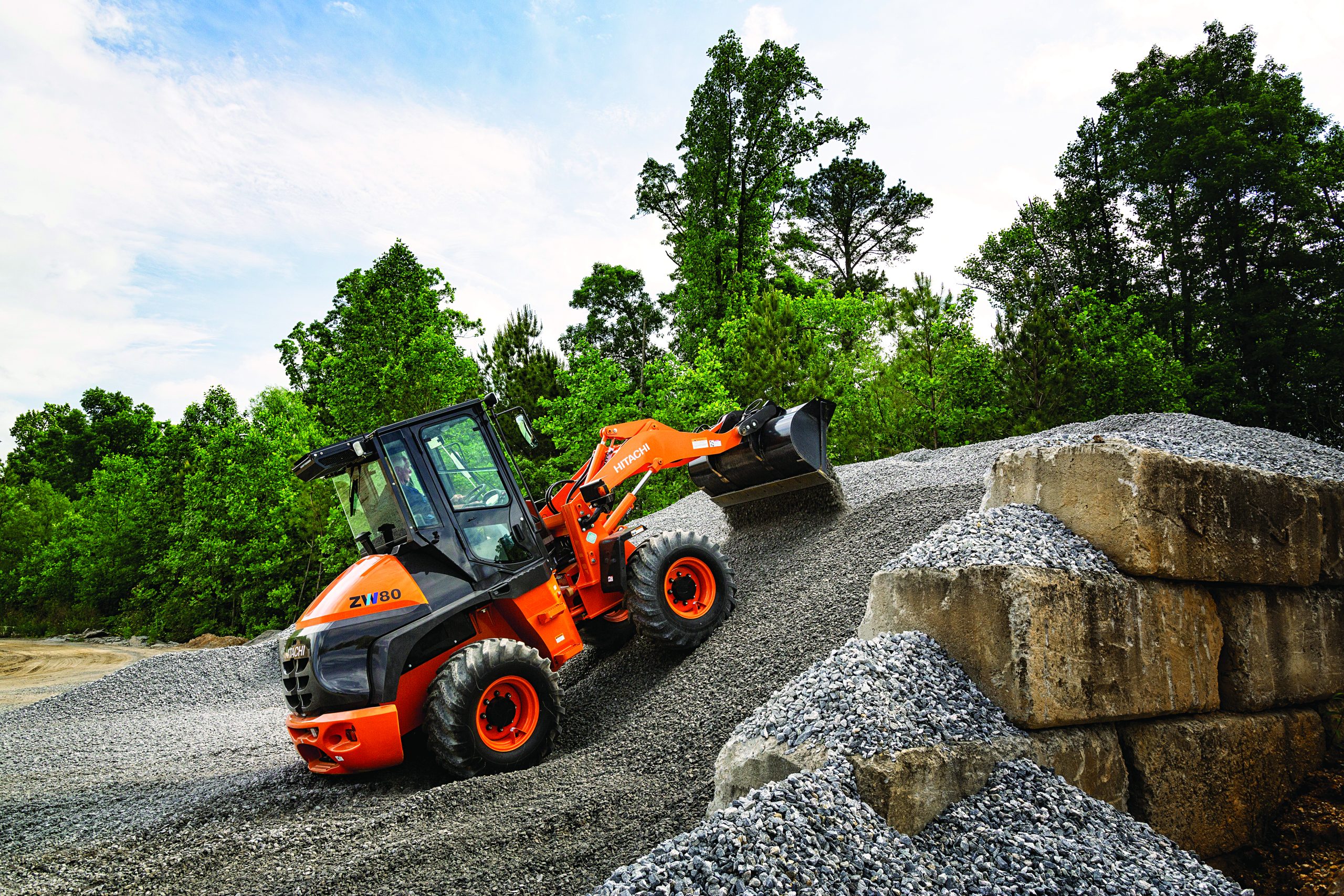

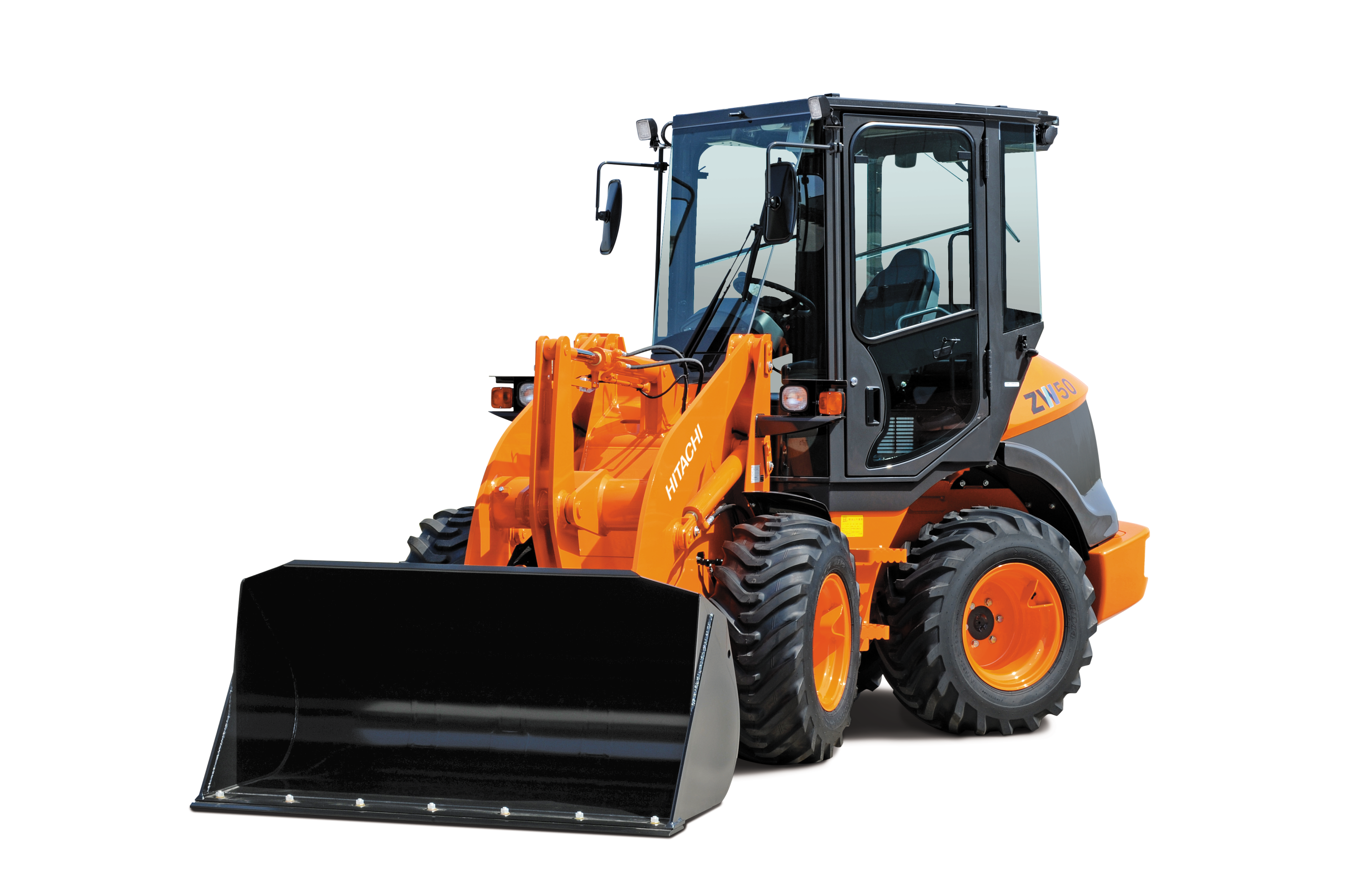

ZW50 / ZW80
Agile footwork and high power. Those come from the Hitachi compact wheel loaders, ZW50 and ZW80. The dynamic styling is impressive, reflecting high mobility, power and productivity.
Product Highlights
- Combined power and performance provide best in class productivity.

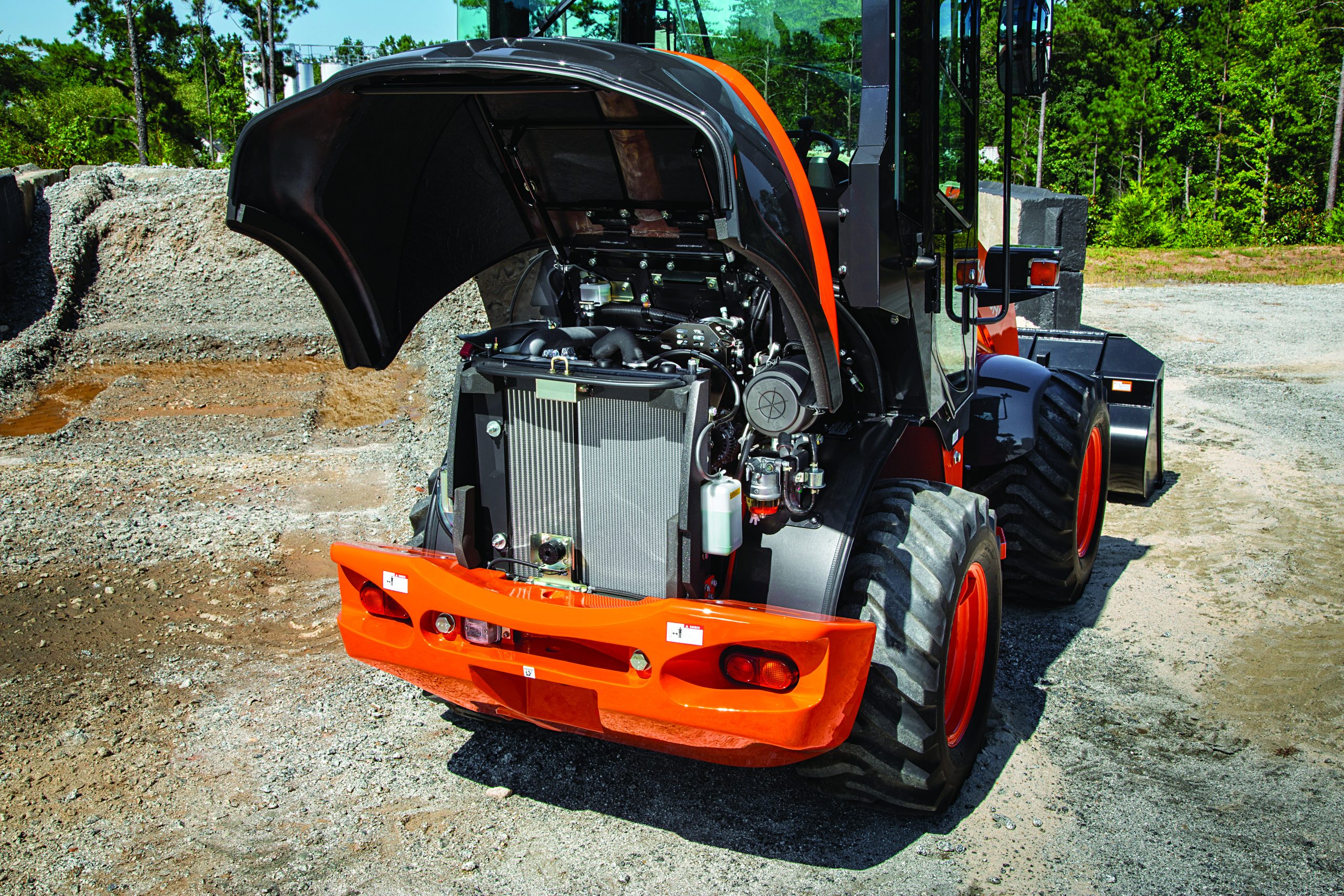

- The new high-powered clean engine is mounted for productive and powerful loader operations.
- Complies with emission regulations US EPA Tier 4 Interim, and EU Stage III A.

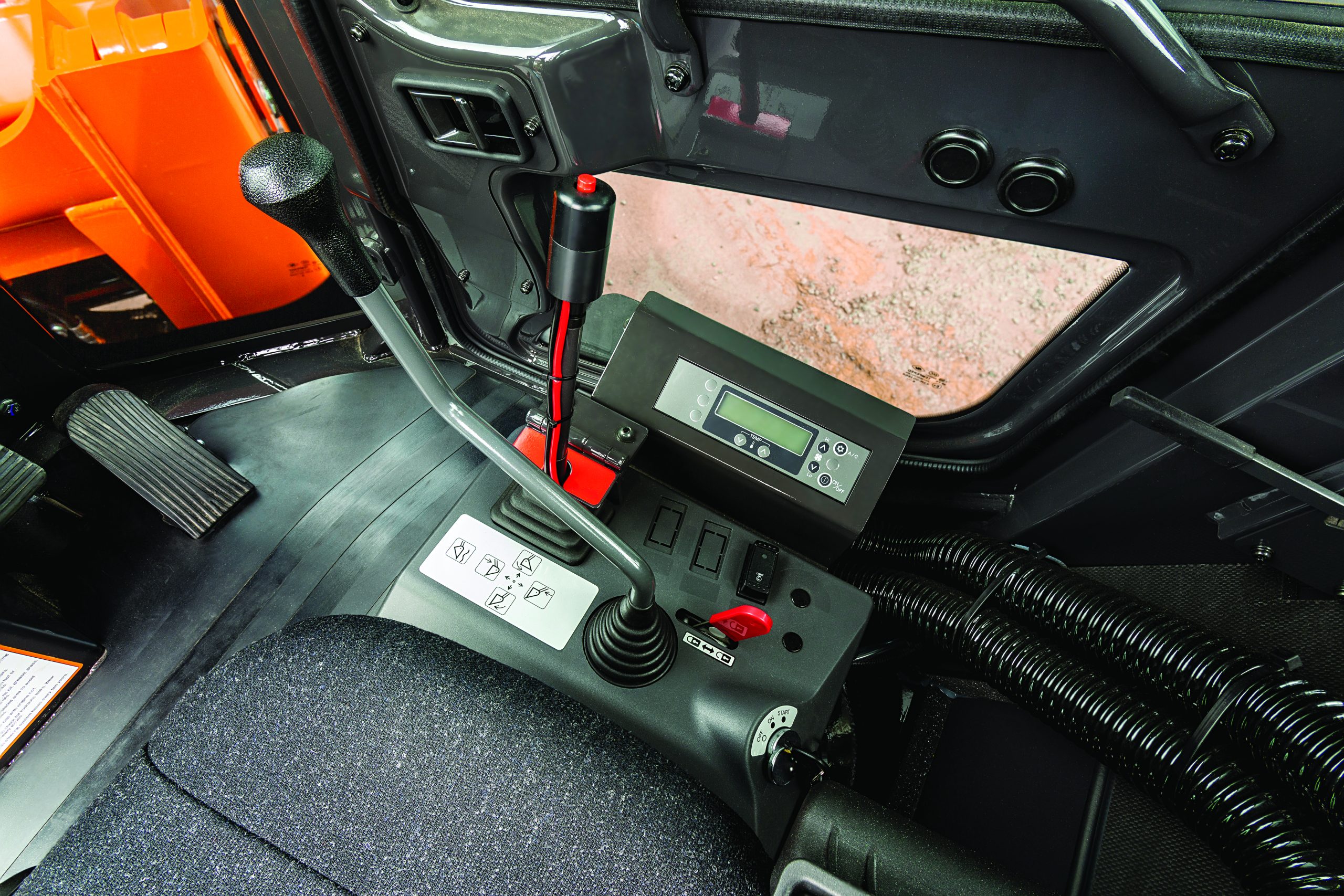

- Ergonomic control lever, locking front differential (ZW80), electric controlled parking brake and universal quick coupler.

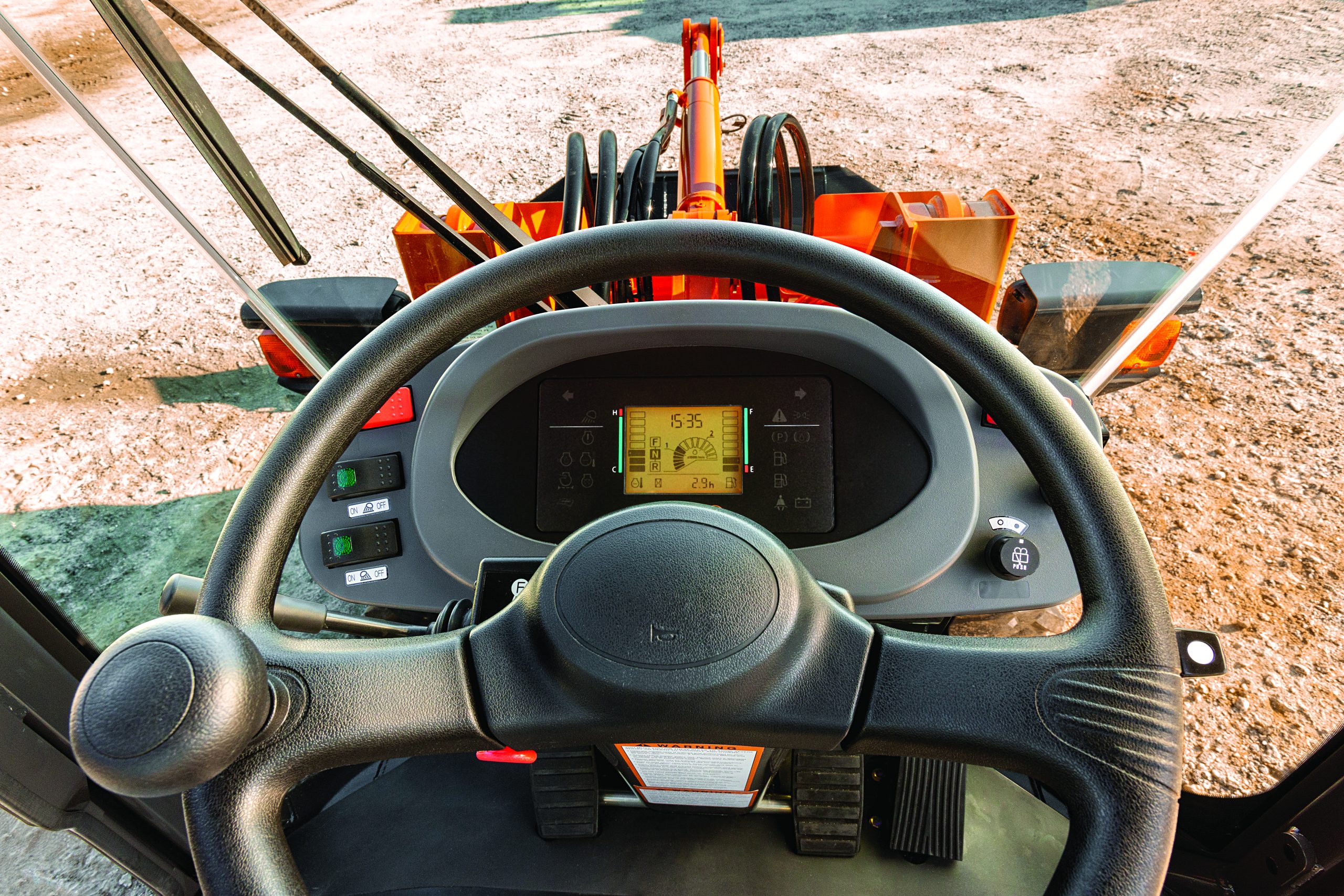

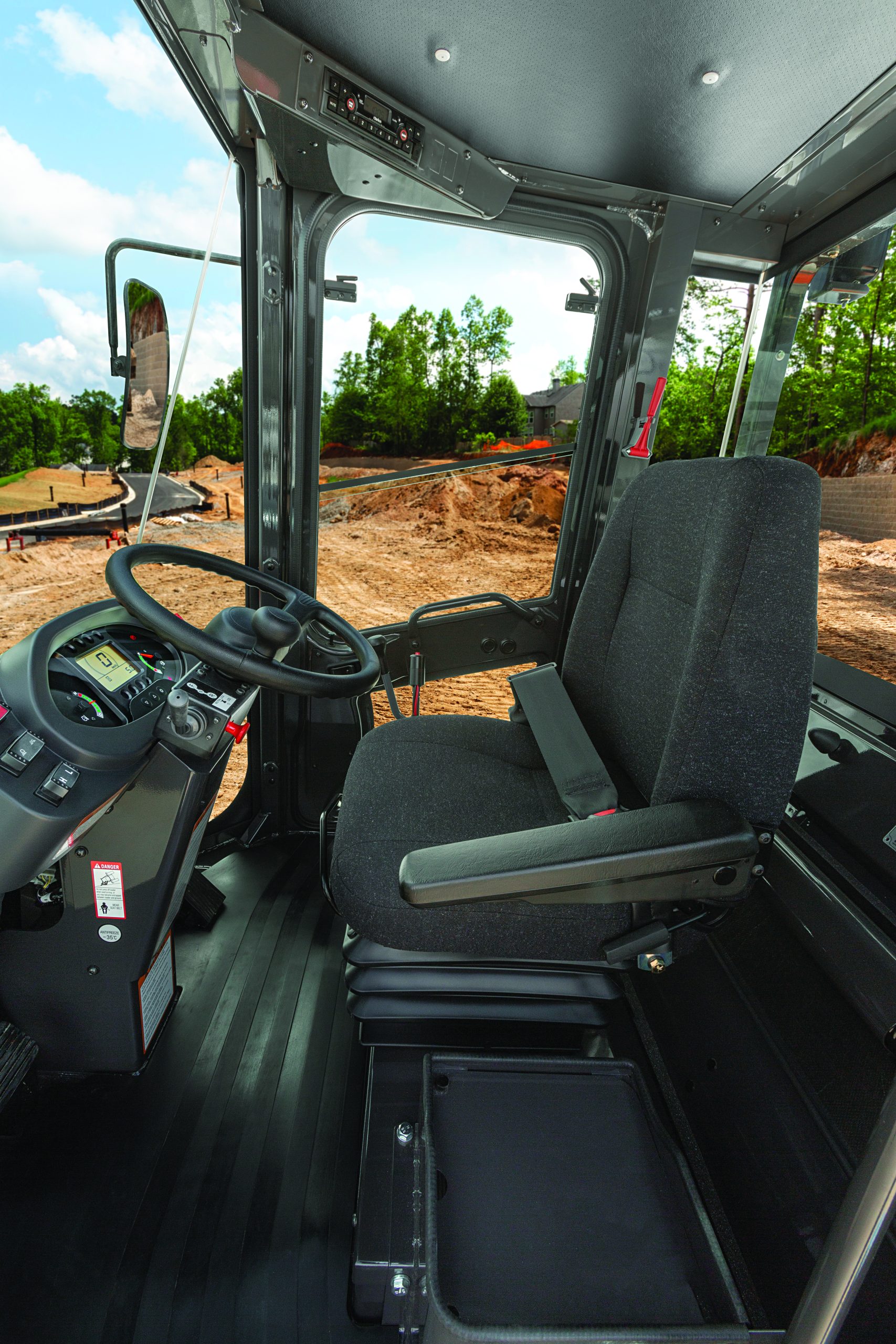

- Panoramic, walkthrough-type cab.
Product Documents
Specifications
| ZW50 | ZW80 | |
|---|---|---|
| Operating Weight | 4,195 kg (9,248 lb) | 5,540 kg (12,214 lb) |
| Bucket Capacity | 0.6-0.9 m³ (0.8-1.2 yd³) | 0.9-1.2 m³ (1.2-1.6 yd³) |
| Engine Power | 34.1 kW (46 HP) | 47.3 kW (63 HP) |
| Dumping Clearance | 2,380 mm (7.8 ft) | 2,355 mm (7.7 ft) |
| Dumping Reach | 995 mm (3.3 ft) | 1,035 mm (3.4 ft) |
| Maximum Travel Speed | 17 km/h (10.6 mph) | 34 km/h (21.1 mph) |
| Overall Length | 4,925 mm (16.2 ft) | 5,440 mm (17.8 ft) |
| Minimum Turning Radius | 3,870 mm (12.7 ft) | 4,540 mm (14.9 ft) |
