Product Highlights

• Powerful and Efficient Engine: Isuzu AR-4JJ1X engine with 100 hp (74.9 kW), meeting EPA Final Tier 4 and EU Stage IV standards. Ensures optimal performance and fuel efficiency with a variable geometry turbocharger and cooled EGR system.

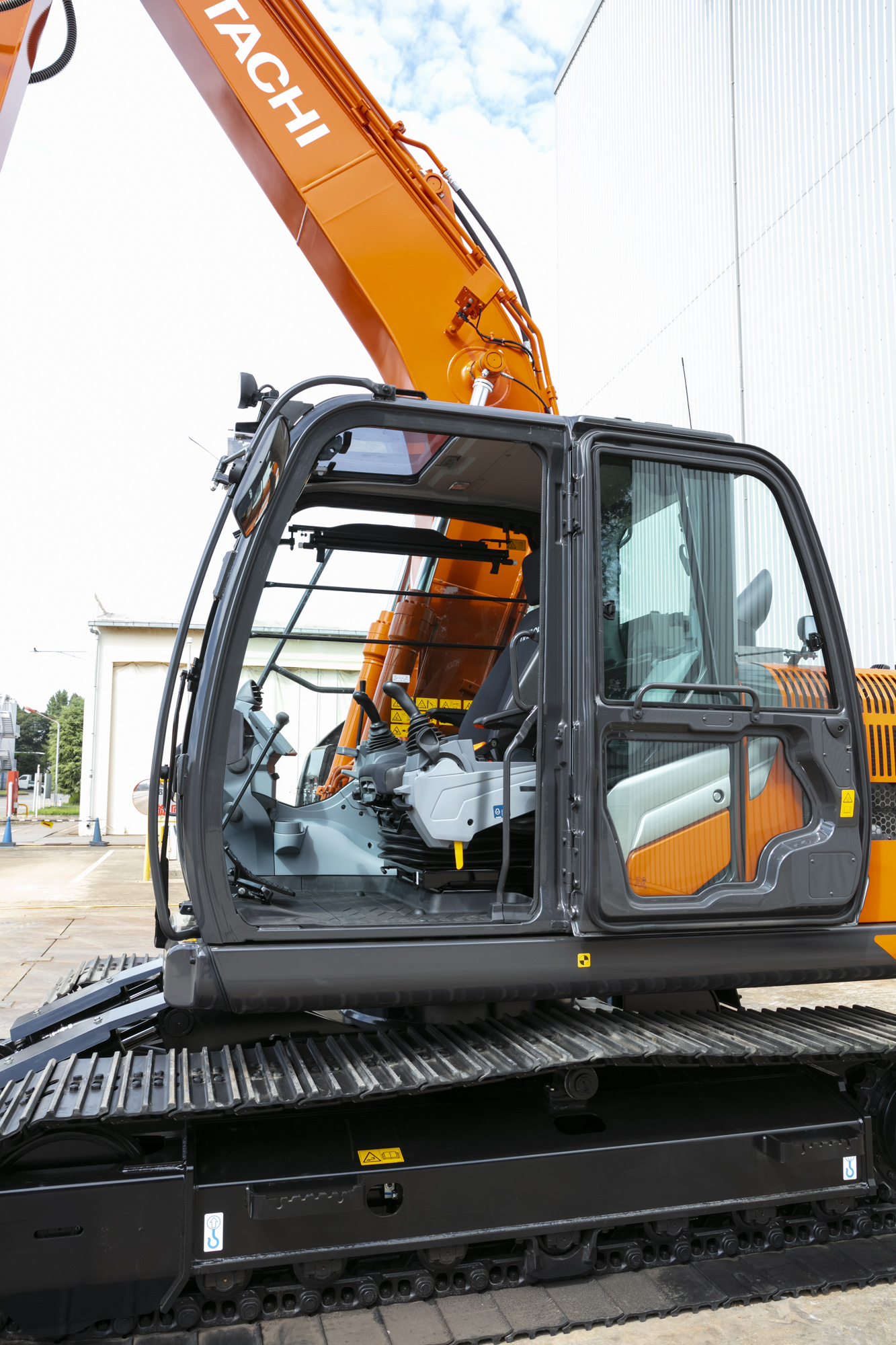

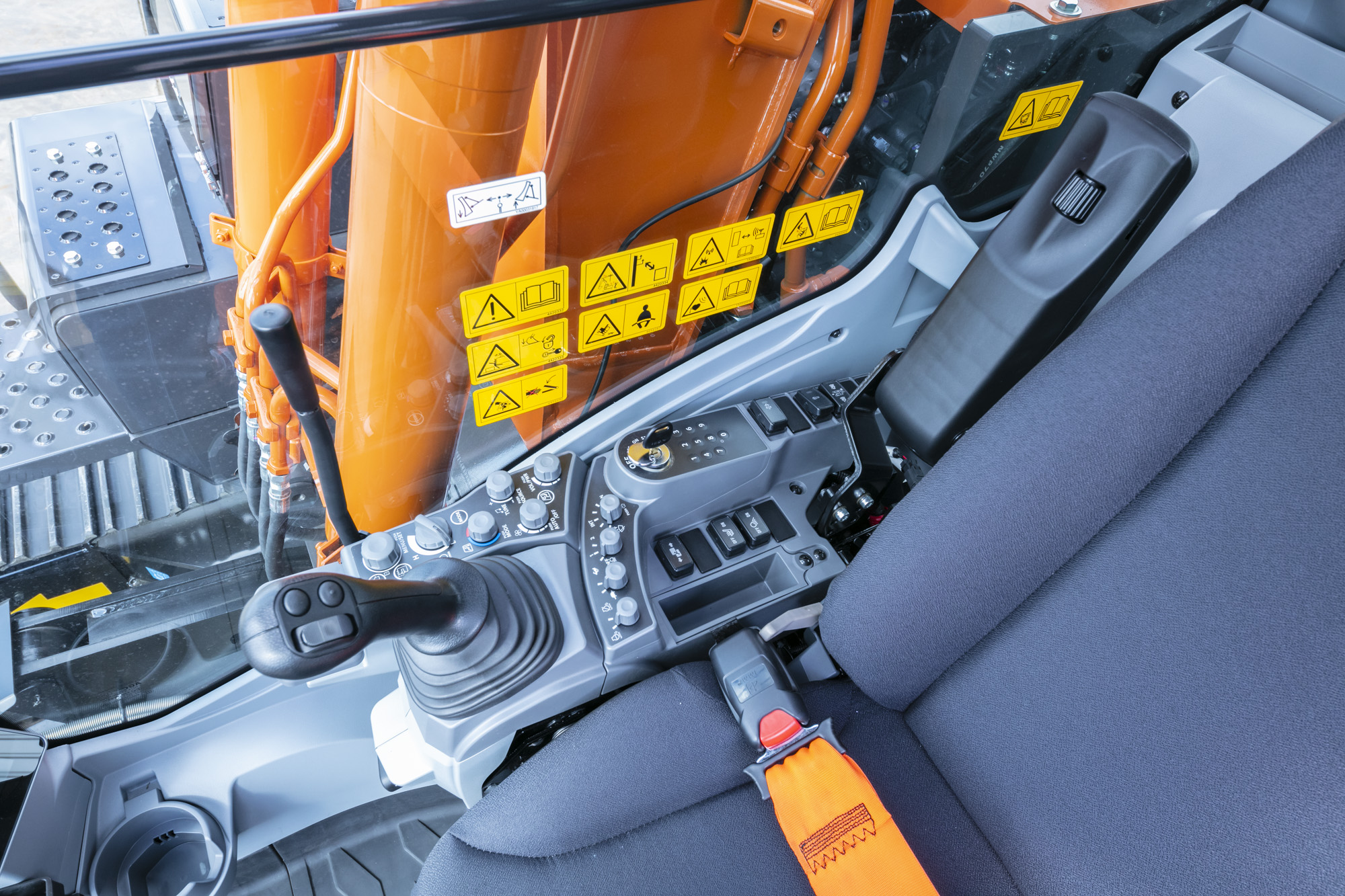

• Operator Comfort and Safety: Spacious, ergonomic cab with an air suspension seat, advanced climate control, and low noise levels (69 dB(A)). Includes OPG Level II guards, evacuation hammer, and a 270-degree aerial angle camera for enhanced safety.
• Advanced Hydraulics: High-efficiency hydraulic system with two axial piston pumps, delivering 2 x 31 gal/min (117 L/min) oil flow. Features auto power lift and hose rupture valves for improved safety and performance.
• Ease of Maintenance: Simplified maintenance with an auto idle system, cartridge-type filters, centralized lubrication, and ConSite OIL sensors. Onboard information controller and satellite communication device for efficient diagnostics.

Specifications

Engine	Isuzu AR-4JJ1X
Net Power	100 hp (74.9 kW)
Operating Weight	30,870 – 33,951 lb (14,000 – 15,400 kg)
Max Dig Reach	28′ 9″ (8,770 mm)
Max Dig Depth	19′ 9″ (6,030 mm)
Swing speed	13.3 min⁻¹
Arm Force (ISO)	13,713 lbf (61 kN)
Bucket Force (ISO)	23,380 lbf (104 kN)
